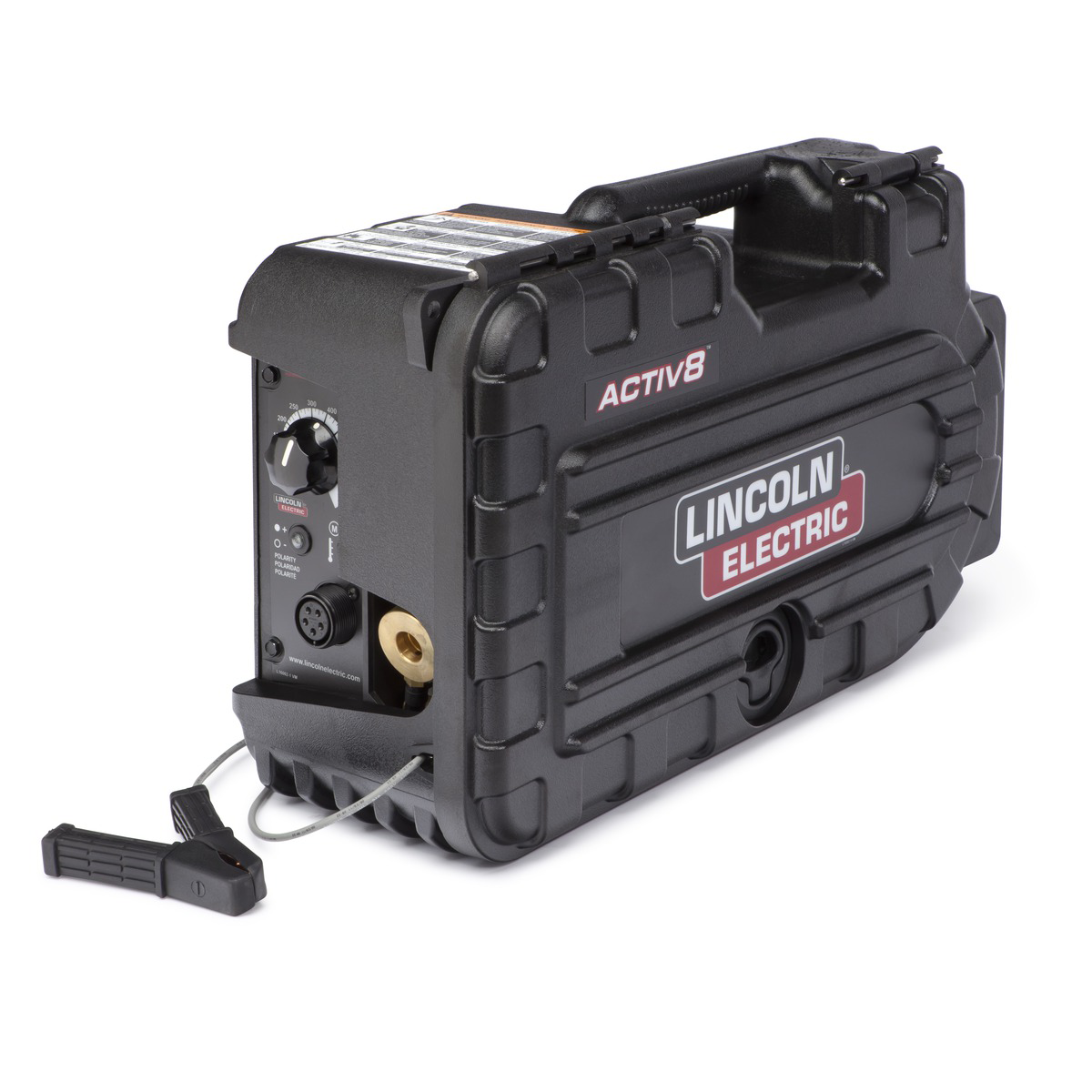

Lincoln Activ8 Wire Feeder

This product is no longer available. Please see similar products below

Features

Smallest, Lightest Construction Wire Feeder Available
50 - 800 IPM Wire Feed Speed
Across-The-Arc Operation (Voltage Sensing)

Description

Activate your shipbuilding, offshore, construction or pipe welding operations with the Activ8 portable wire feeder. Small enough to fit through ship manways and light enough to carry around the site.

Lincoln Activ8 Wire Feeder Spec Sheet
Lincoln Activ8 Wire Feeder Operator Manual

Specifications

Input Power:	15-110 VDC
Rated Output:	330A/60% duty cycle
Wire Feed Speed Range:	50 - 800 IPM
Wire Size Range:	GMAW: .023 - .052" FCAW: .035 - 5/64"
Weight:	27 lb (12.2 kg)
Dimensions:	H: 11.8 in (298 mm) W: 7.6 in (193 mm) D: 19.8 in (503 mm)

Additional Features

The Activ8 is designed for tough welding environments with limited access. Compatible with compact 8 in. (203 mm) wire spools, the Activ8™ can be used with any DC CV or CC power source.

Features

Breakthrough Size and Weight – Smallest and lightest construction wire feeder on the market today
Simple Controls – Wire feed speed knob on the front; booted Cold Feed/Gas Purge, Trigger Interlock and CV/CC switches inside
Across-The-Arc Operation (Voltage Sensing) – Uses a sense lead and a contractor for enabling welding current
Tough Plastic Case – Molded from a high impact, flame retardant material for high durability and low weight
MAXTRAC Wire Drive System
Dual gear-driven drive system ensures positive feeding performance
Patented wire drive features include tool-less drive roll and wire guide changes for quick spool replacement
A tachometer controlled motor powers the patented drive rolls for smooth, steady feeding without wire slippage
