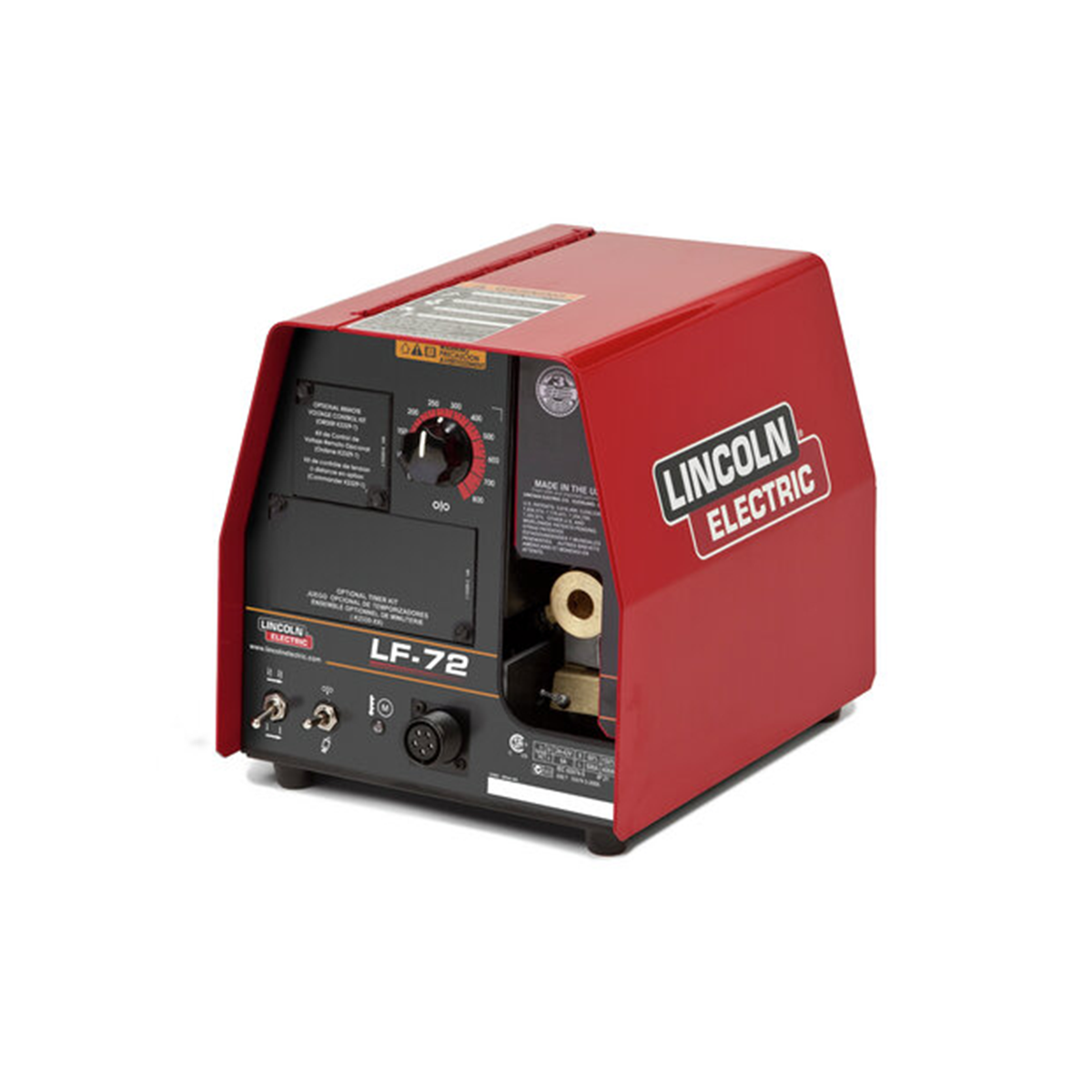

LF72 Industrial Wire Feeder
Contact for Pricingea
LF72 Industrial Wire Feeder
Subject to availability. One week minimum rental.
Features
Description
Designed for MIG and cored wire welding in job shop and manufacturing environments, the rugged LF-72 and LF-74 wire feeders are built to deliver reliable performance day after day.
Heading
| Wire Feeder Type | Bench|Semiautomatic |
|---|---|
| Customer favorites | No |
| Description | LF72 Industrial Wire Feeder |
| Item number | MLF72WireFeed |
| New | No |
| Product name | LF72 Industrial Wire Feeder |
| Staff favorites | No |
Specifications
| Manufacturer Part Number: | K2327-7 |
| Model Number: | LF72 |
| Processes: | MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW) |
| Wire Feed Speed: | 50 - 800 IPM |
| Drive-Roll System: | 2-Roll |
| Input Power: | 24 - 42 VAC, 9 A, 50/60 Hz |
| Output Capacity: | 500 A @ 60% duty cycle, 400 A @ 100% duty cycle |
Additional Features
At the heart of these feeders is the highly engineered 2-roll or 4-roll MAXTRAC wire-drive system for strong and consistent feeding force for stainless steel, aluminum and flux-cored wires. Select 2-roll version for most .035 - .045"" wire applications and the 4-roll version for large diameter wires, longer gun cables and up to 600 amps @ 60% duty-cycle requirements. Operates on 24 or 42 VAC. 115/42 VAC transformer available for 115 VAC power sources. Specify wire size and type for correct drive roll selection.
Features
Features
- Patented MAXTRAC™ heavy-duty cast aluminum wire drive system provides reliable feeding and durability
- Brass-to-brass gun connections for better electrical conductivity that results in better arc performance
- Totally tool-less drive rolls and wire guide installation. Two or four gear-driven wire drive rolls slide on and off easily
- Calibrated wire feed speed dial for precise and accurate settings
- Rugged, industrial-grade wire feeder motor
- In addition to great mild steel performance, these feeders deliver positive arc starting and feeding with stainless steel, aluminum and flux-cored wires
- Control cable connector with a Spin-Nut™ makes connecting the control cable a simple twist-of-the-wrist
- Totally enclosed wire drive
- Manufactured under a quality system certified ISO 9001 requirements and ISO 14001 environmental standards
- Three-year warranty on parts and labor
