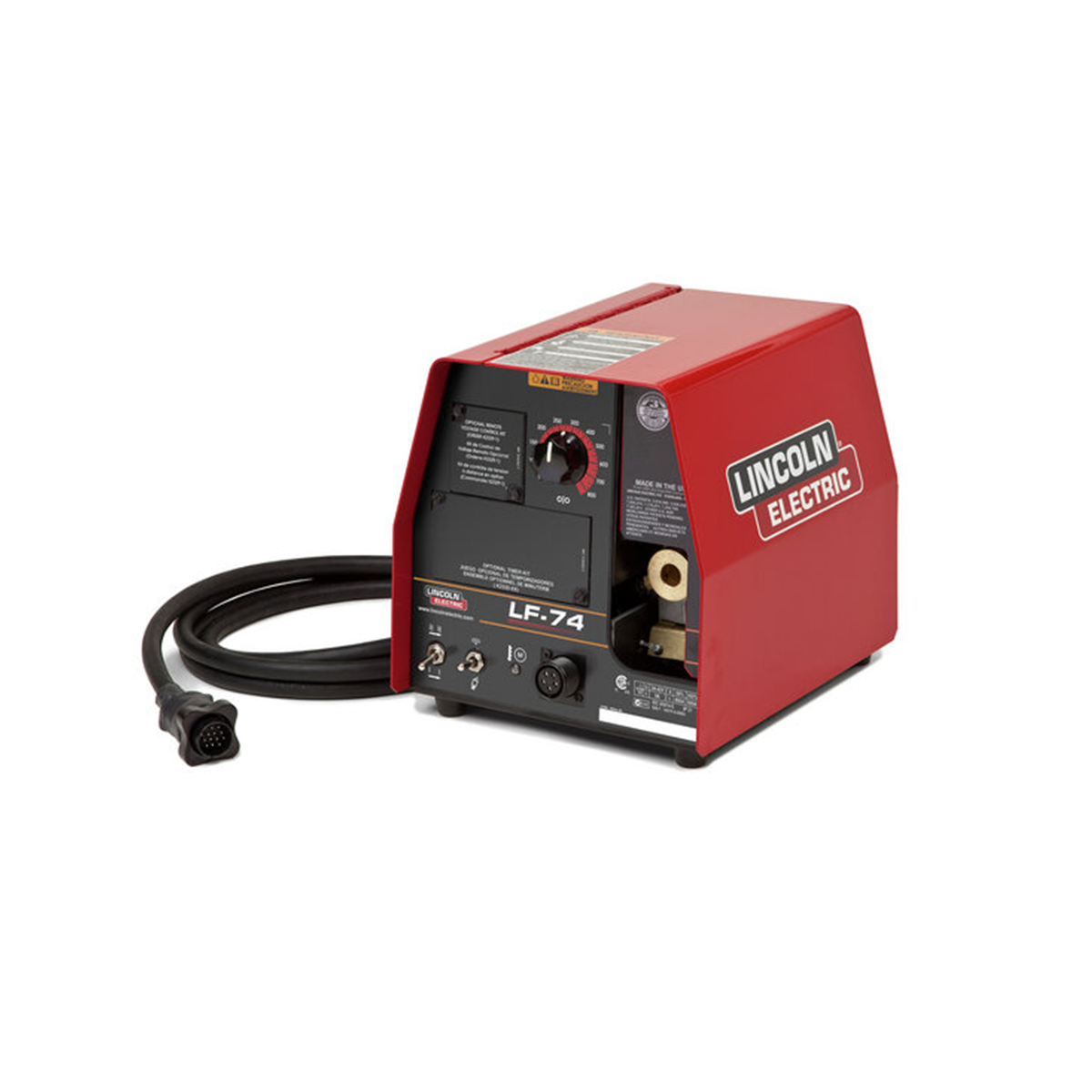

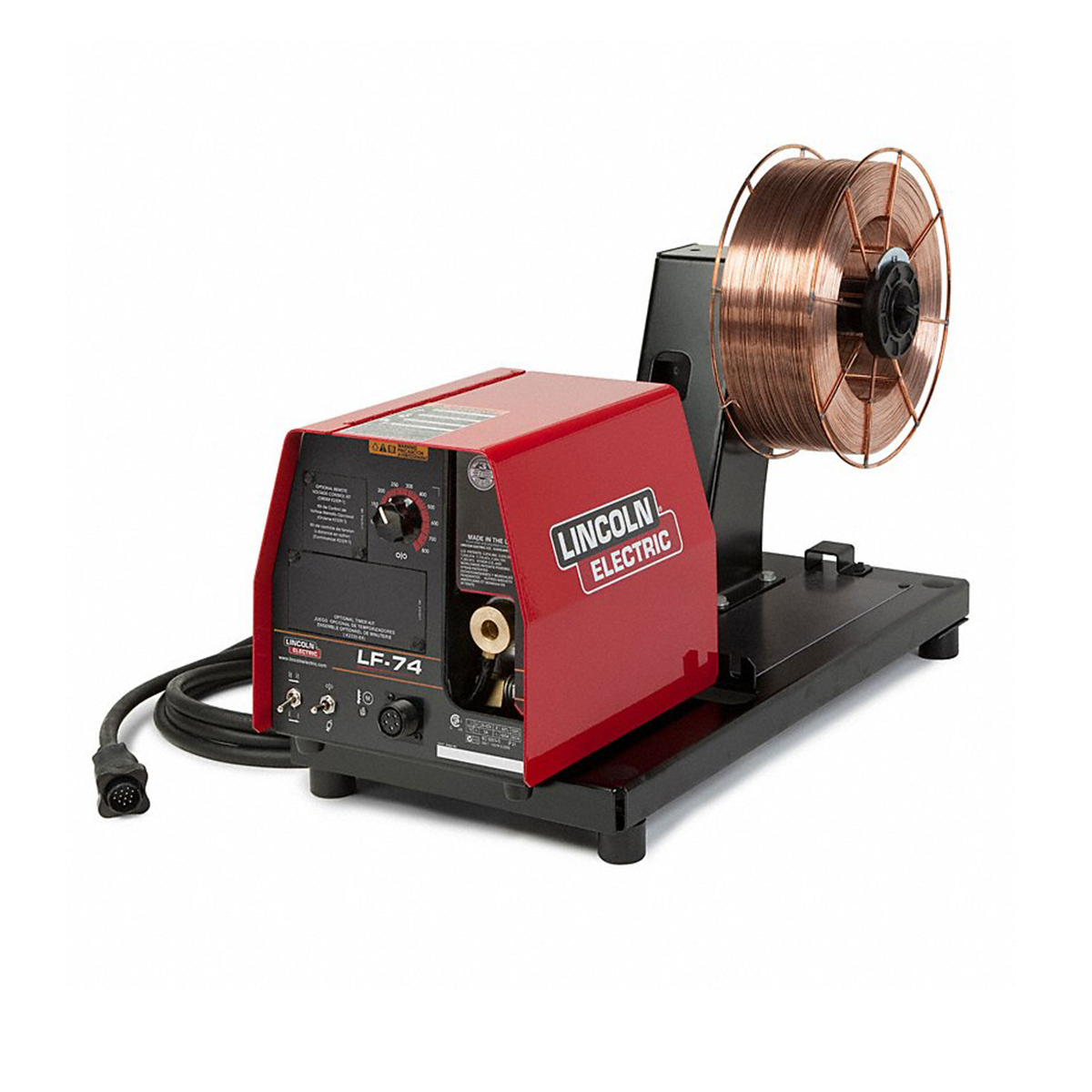

LF74 Industrial Wire Feeder
Contact for Pricingea
LF74 Industrial Wire Feeder
Subject to availability. One week minimum rental.
Features
- LF72 2-Roll and LF74 4-Roll Models Available
- Wire Size Range - Solid Wire .023 - 1/16"", Cored Wire .030 - 5/64""
- MAXTRAC Heavy-Duty Cast Aluminum Wire Drive System
Description
Designed for MIG and cored wire welding in job shop and manufacturing environments, the rugged LF-72 and LF-74 wire feeders are built to deliver reliable performance day after day.
Heading
| Customer favorites | No |
|---|---|
| Description | LF74 Industrial Wire Feeder |
| Item number | MLF74WireFeed |
| New | No |
| Product name | LF74 Industrial Wire Feeder |
| Staff favorites | No |
Specifications
| Manufacturer Part Number: | K2426-5 |
| Model Number: | LF74 |
| Processes: | MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW) |
| Wire Feed Speed: | 50 - 800 IPM |
| Drive-Roll System: | 4-Roll |
| Input Power: | 24 - 42 VAC, 9 A, 50/60 Hz |
| Output Capacity: | 500 A @ 60% duty cycle, 400 A @ 100% duty cycle |
Additional Features
At the heart of these feeders is the highly engineered 2-roll or 4-roll MAXTRAC wire-drive system for strong and consistent feeding force for stainless steel, aluminum and flux-cored wires. Select 2-roll version for most .035 - .045" wire applications and the 4-roll version for large diameter wires, longer gun cables and up to 600 amps @ 60% duty-cycle requirements. Operates on 24 or 42 VAC. 115/42 VAC transformer available for 115 VAC power sources. Specify wire size and type for correct drive roll selection.
