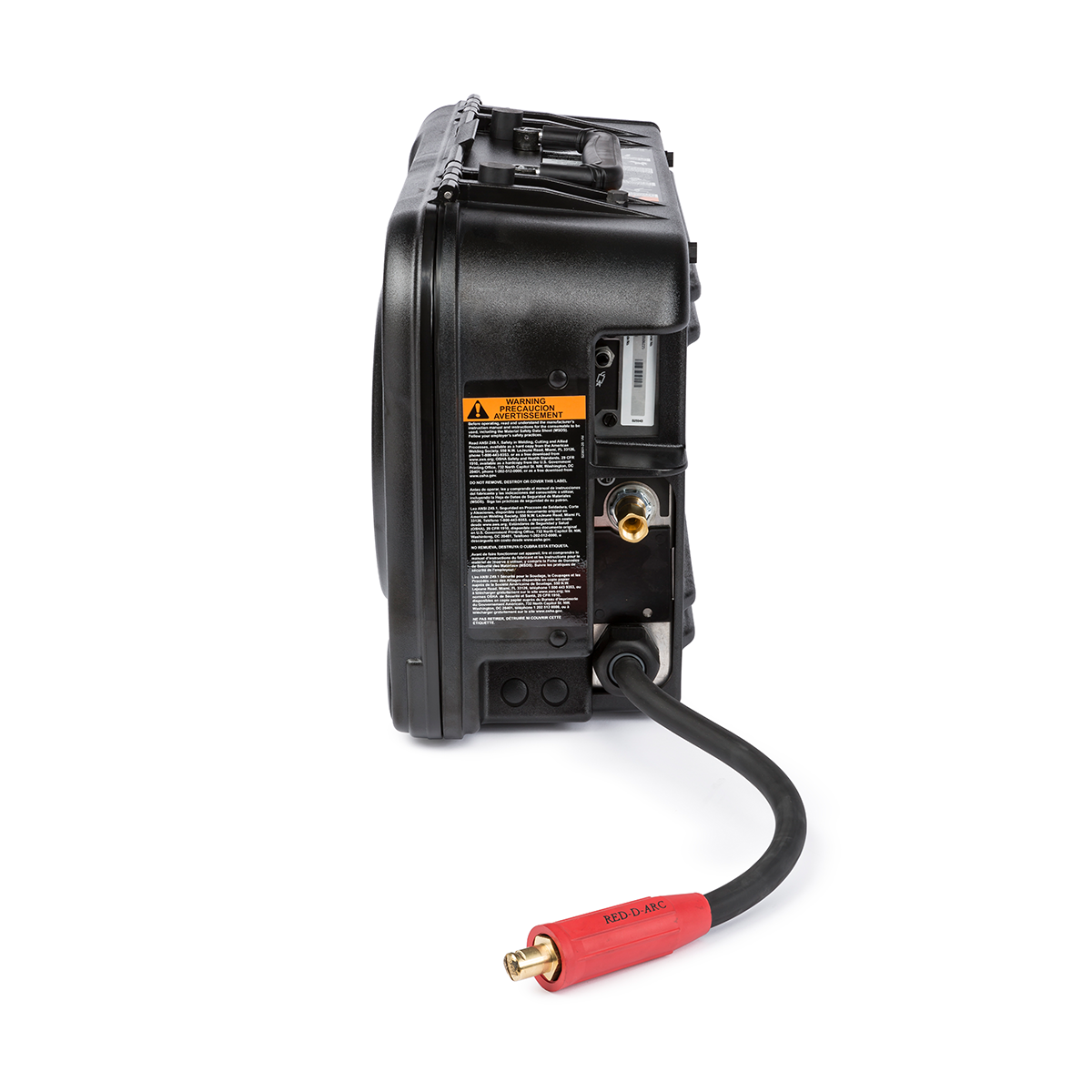

LN25X Wire Feeder w/CrossLinc
Contact for Pricingea
LN25X Wire Feeder w/CrossLinc
Subject to availability. One week minimum rental.
Features
Description
The LN25X wire feeder is designed to be simple, reliable and durable. CrossLinc Technology sends voltage information hundreds of feet using a standard weld cable, providing full control of your system without the need for control cables.
Heading
| Wire Feeder Type | Suitcase|Semiautomatic |
|---|---|
| Customer favorites | No |
| Description | LN25X Wire Feeder w/CrossLinc |
| Item number | MLN25X |
| New | No |
| Product name | LN25X Wire Feeder w/CrossLinc |
| Staff favorites | No |
Specifications
| Manufacturer Part Number: | K4326-2 |
| Model Number: | LN25X |
| Processes: | MIG (GMAW), Flux-Cored (FCAW) |
| Input Power: | 15-110 VDC |
| Output Capacity Current/Duty Cycle: | 450A/60% |
| Solid Wire Size Range: | .023-1/16" (0.6-1.6 mm) |
| Cored Wire Size Range: | .030-5/64" (0.8-2.0 mm) |
| Aluminum Wire Size Range: | .035-1/16" (0.9-1.6 mm) |
| Wire Speed Range IPM (m/min): | 50-700 ipm (1.3-17.7 m/min) |
| Dimensions (H x W x D): | 15" x 8.7" x 23.2" (381 mm x 221 mm x 589 mm) |
| Approx. Net Weight: | 40.5 lb (18.37 kg) |
Additional Features
Features
- Arc Hour Meter for tracking maintenance and productivity
- Digital Meters display voltage, current and wire feed speed
- Reduce job site clutter by removing cumbersome control cables
- Eliminate unnecessary movement of personnel across the worksite
- Eliminate the need to drag control cables around the site
- Full voltage control at the feeder results in the correct settings for every weld
- Accurately compensate for voltage drop across long cable runs
- Eliminate unintentional machine adjustments
- Set up faster with fewer cable connections
- Eliminate helpers or trips to the power source when making setting adjustments
- Minimize rework with easy settings adjustment
- Complete with Flow Meter
- Fully encapsulated and environmentally protected electronics
- Replaceable flame resistant case can be installed in under five minutes
