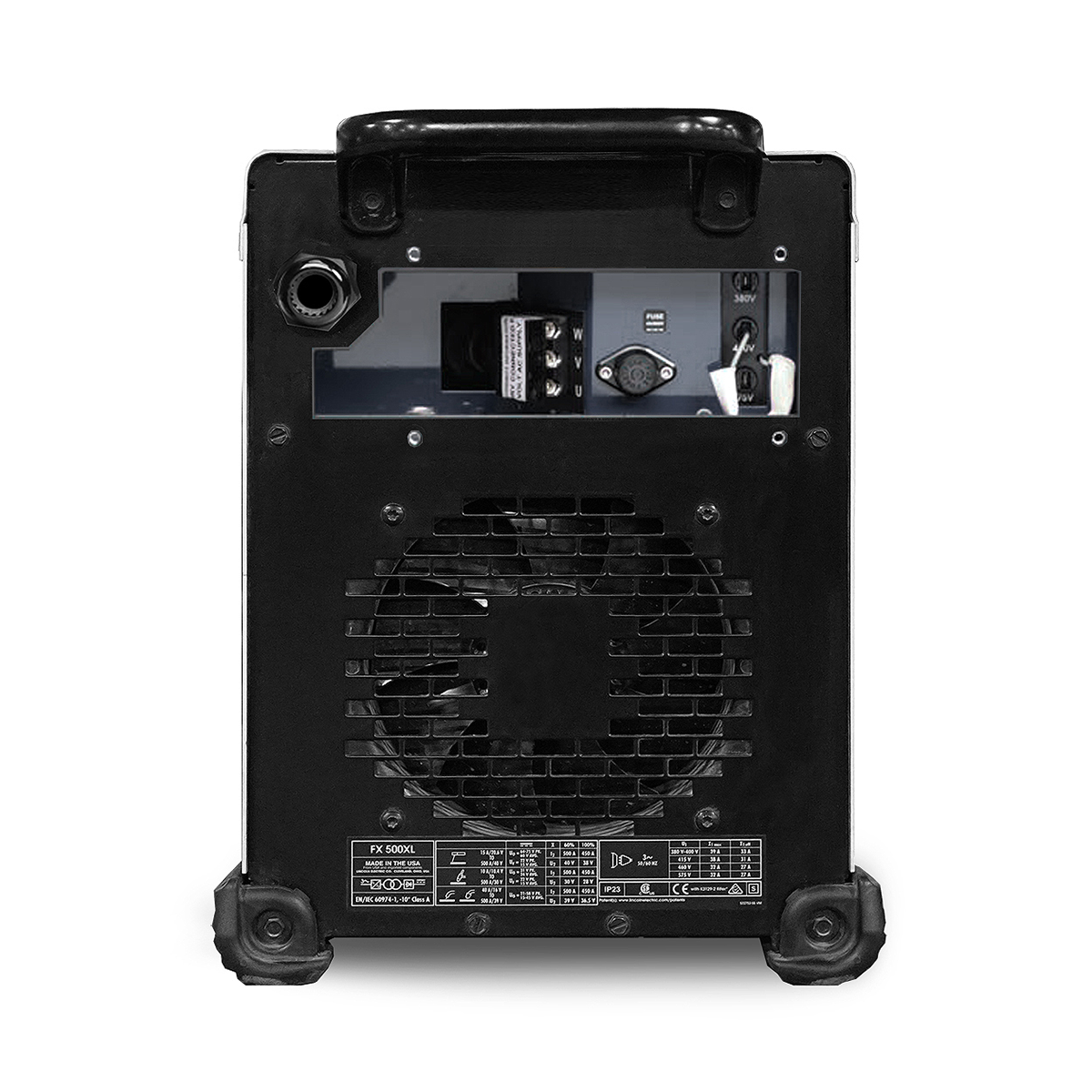

FX500XL Multi Process Welder with crosslinc.

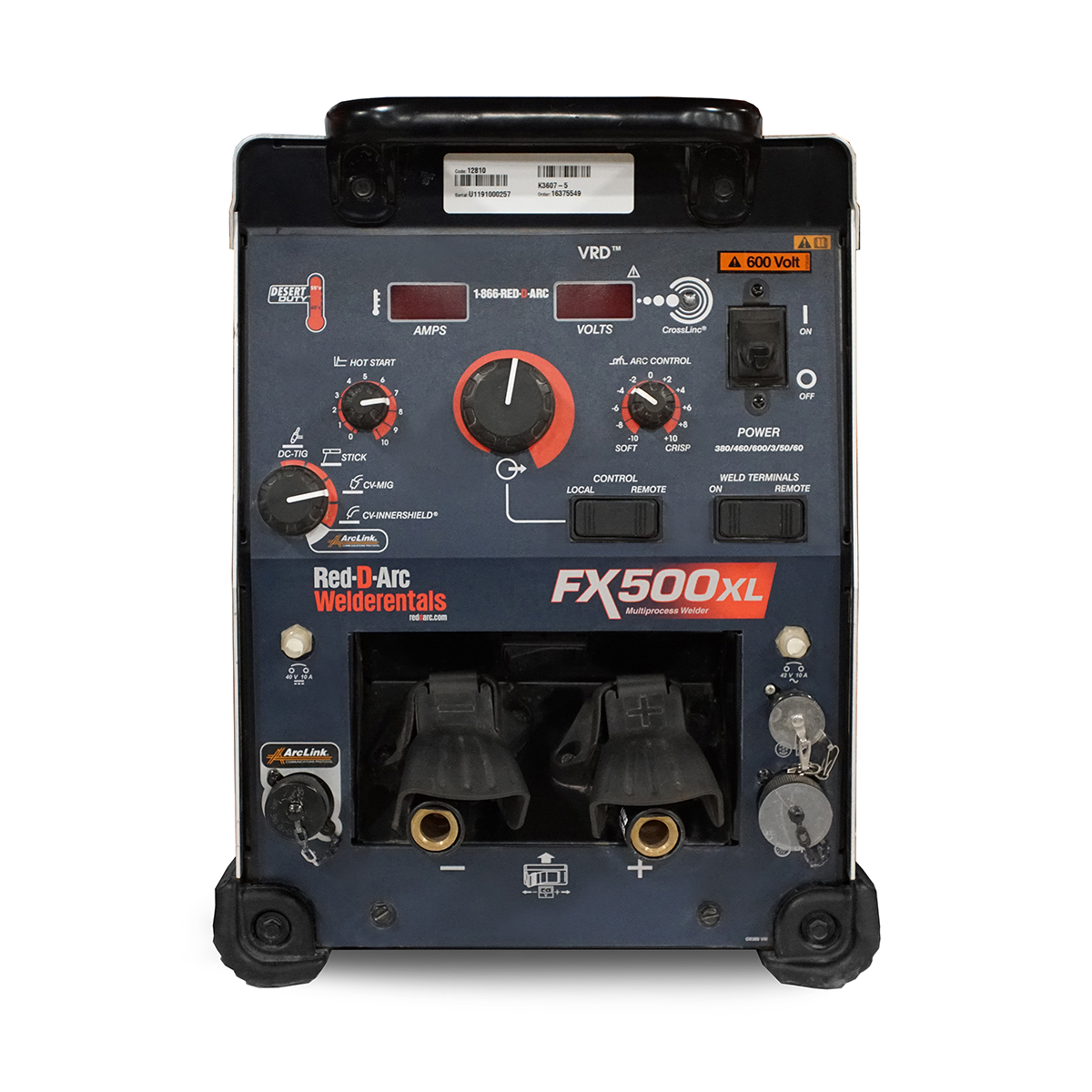

FX500XL Multi-Process Inverter Welder w/CrossLinc

Contact for Pricing

Quantity

Subject to availability. One week minimum rental.

Rent

Lease

Used

New

Features

Touch-Start TIG for Easy, Contamination-Free Starts

Optimized for Both Cellulosic and Low Hydrogen Electrodes

CrossLinc Technology Enabled

Description

A multi-process power source for all your welding needs. The FX500XL is adaptable, easy to use and ruggedly built to to endure the toughest working environments, whether indoor or outdoor.

Heading

Max Output	100-199
Weld Output	CC
Current Type	DC
Customer favorites	No
Description	FX500XL Multi-Process Inverter Welder w/CrossLinc
Item number	MFX500XL
New	No
Product name	FX500XL Multi-Process Inverter Welder w/CrossLinc
Staff favorites	No

Specifications

Manufacturer Part Number:	K3607-5
Model Number:	FX500XL
Processes:	Stick (SMAW), MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW), TIG (GTAW), Air Carbon Arc Cutting and Gouging (CAC-A)

Input Power:	380/460/575/3/50/60
Output:	CC/CV DC output 5-500A

Rated Output
Current/Voltage/Duty Cycle:	Input Current@ Rated Output:
500A/40V/60%	9/31/31
450A/38V/100%	33/27/27

Height:	18.8 in. (478 mm)
Width:	14 in. (356 mm)
Length:	26.5 in. (673 mm)
Weight:	120 lbs (54 kg)

Additional Features

Flexible

The FX500XL supports multiple weld processes: MIG, TIG, Stick, Gouging and FCAW. The FX500XL can be used with nearly all Lincoln wire feeders due to available feeder communication connections.

Across-the-arc Connection

Across-the-arc feeders connect to the power source using the weld cables. This basic configuration does not use a control cable or CrossLinc Technology, so voltage control is only accessed at the welding power source.

5-pin Control Cable Connection

Compatible with Lincoln Power Feed wire feeders. 5-pin high-speed digital communication enables advanced welding processes and additional operator controls. Designed to be compatible with future wire feeder models.

Reliable

IP23 rating means the FX500XL welder will excel in outdoor environments, such as construction sites and shipyards
Desert Duty® rated for operation in the harshest environments (up to 55°C)
Durable trayed and potted PC boards for electronics
